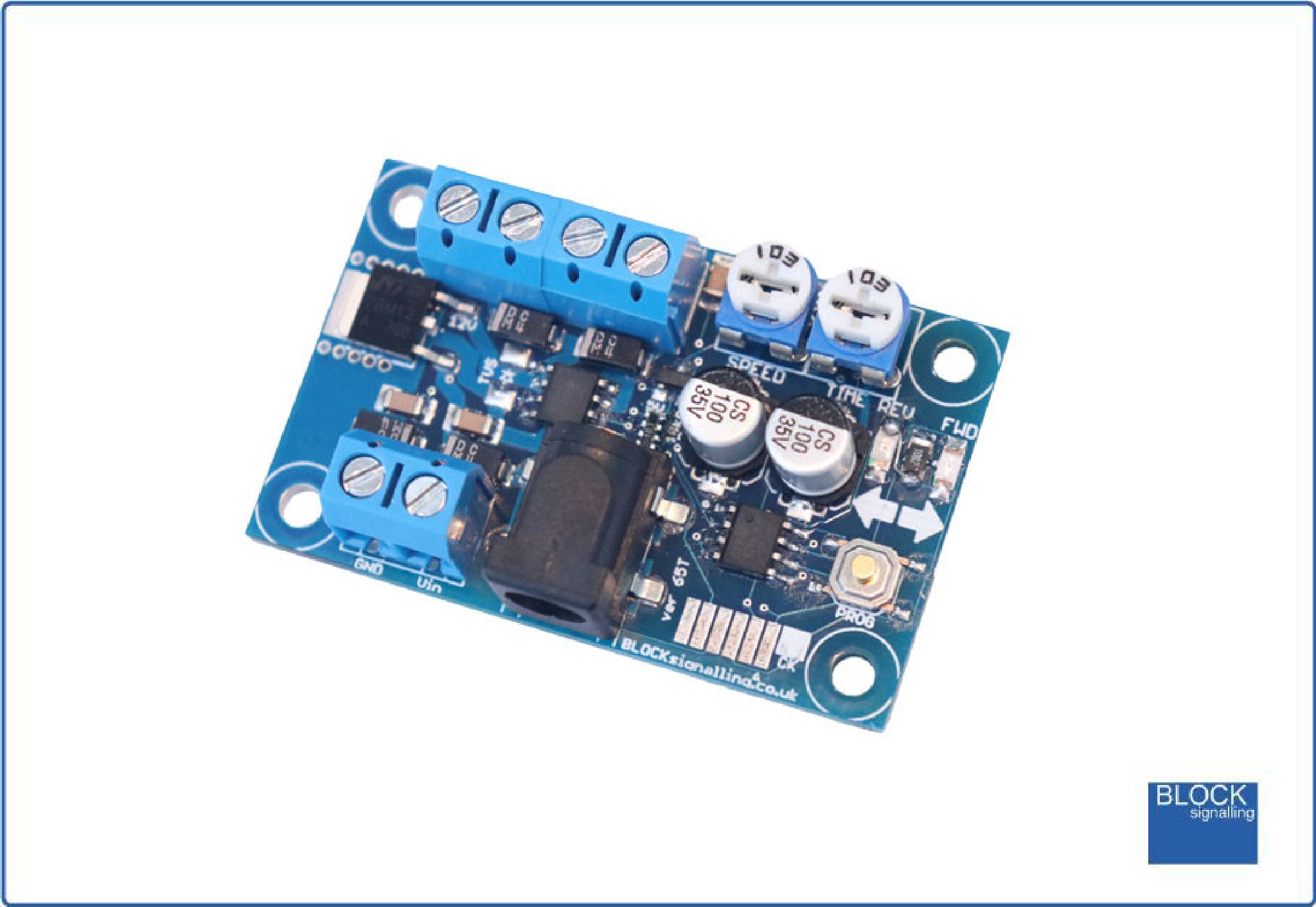

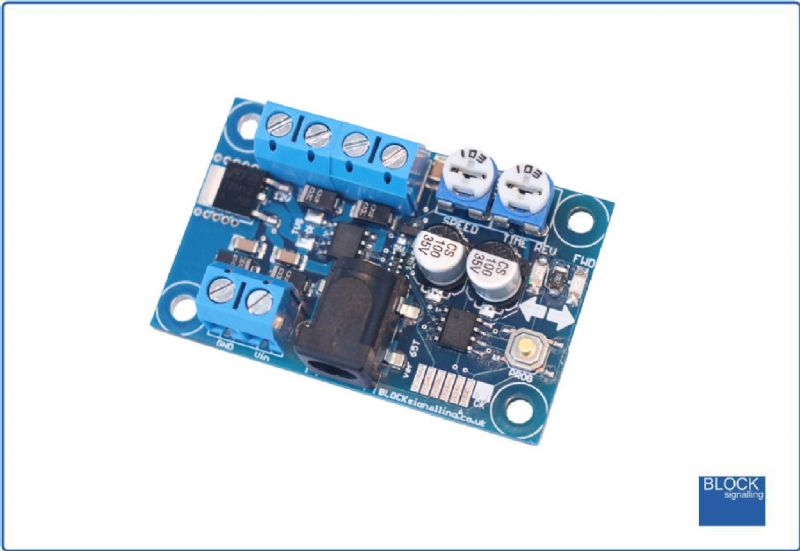

BLOCKSignalling SS2A Shuttle
DC Shuttle Train Controller with Adjustable Delay and Built-
Automatically operates a train backwards and forwards along a single line
Waiting time at the ends can be varied with a simple screwdriver adjustment
The module includes speed control, so a separate controller is not required
An acceleration function is also included for trains departing for a more realistic operation.
An led on the PCB shows when the train is moving forwards, and flickers when it is reversing
Fixed and random delays can be programmed easily for realistic operation
Microprocessor controlled for accuracy
Simple wiring and operation.
The module requires a 12V DC power supply, with a minimum recommended capacity 0.5A for N and Z scale and 1.0A for OO and HO scale.
The module includes a speed controller which provides a switched 12V output to the rails which is pulsed to control the speed of the train.
