DCC Coach / Carriage Lighting Kit
This kit will work on 12v DC analogue track and also on DCC enabled systems.

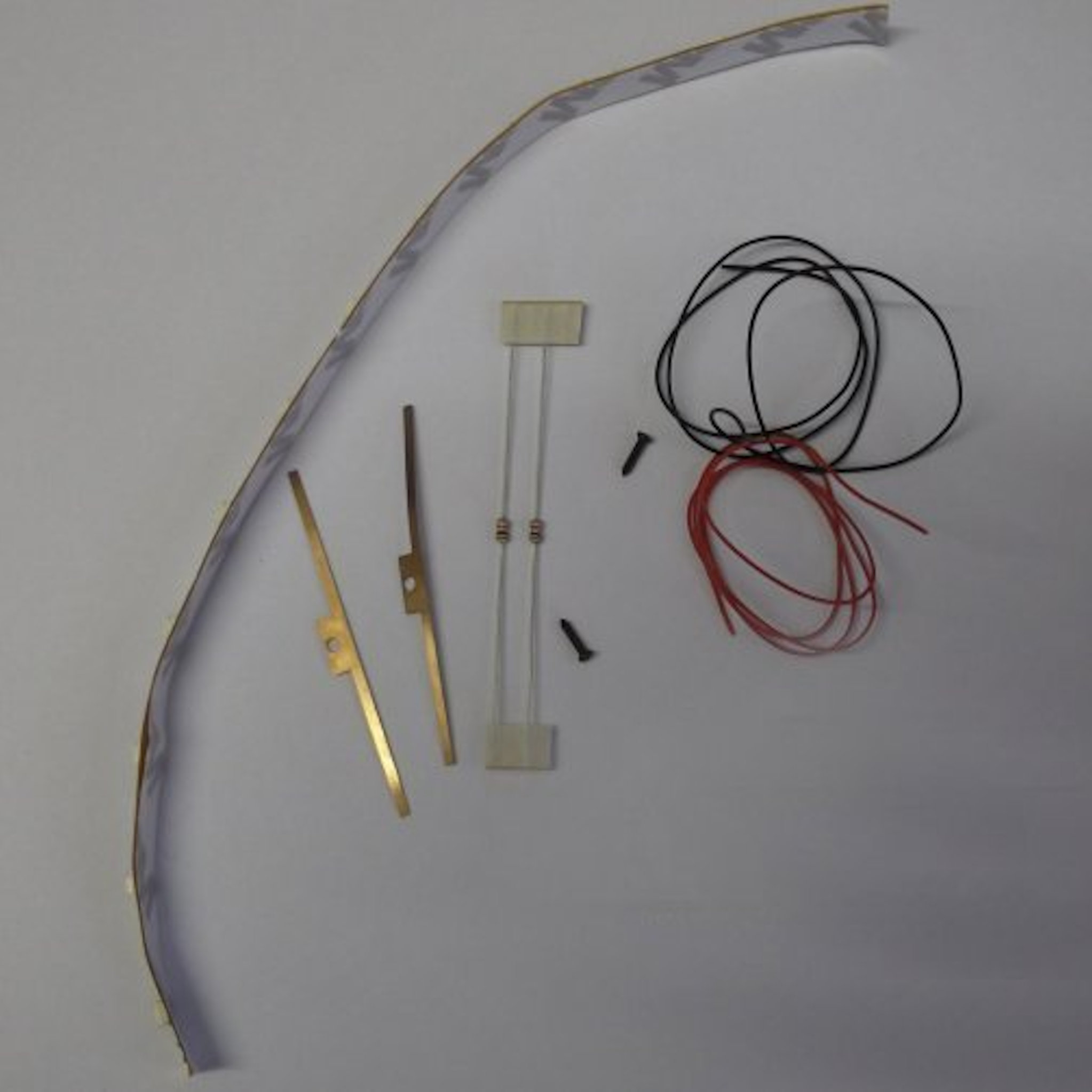

Self Adhesive LED Strip with 12 LEDs (20 cm long).Two laser etched pickups with tabs for screws (or you can glue them), screws, black and red ultra fine multistrand wire (+ two resistors to reduce the brightness if required if used on DCC). Full instructions with step by step photos. Available in Cool White, Warm White or Amber. £3.99.
You can if required cut the LED strip every 3 LEDs on the scissor marks for shorter coaches, so you can have a 12, 9, 6 or 3 LED strip.
Although aimed at DCC these will work on DC but please note that if using DC the lights will go out when reversing the train. However with the addition of a small bridge rectifier (see below) or by adding an extra LED strip wired the opposite way round to the first they will work in both directions. Flashing and non flashing red tail lights available (see further down page) which you can solder to the LED strip.
Anti Flicker/Dimmer available here
Click for Video Link for instructions
