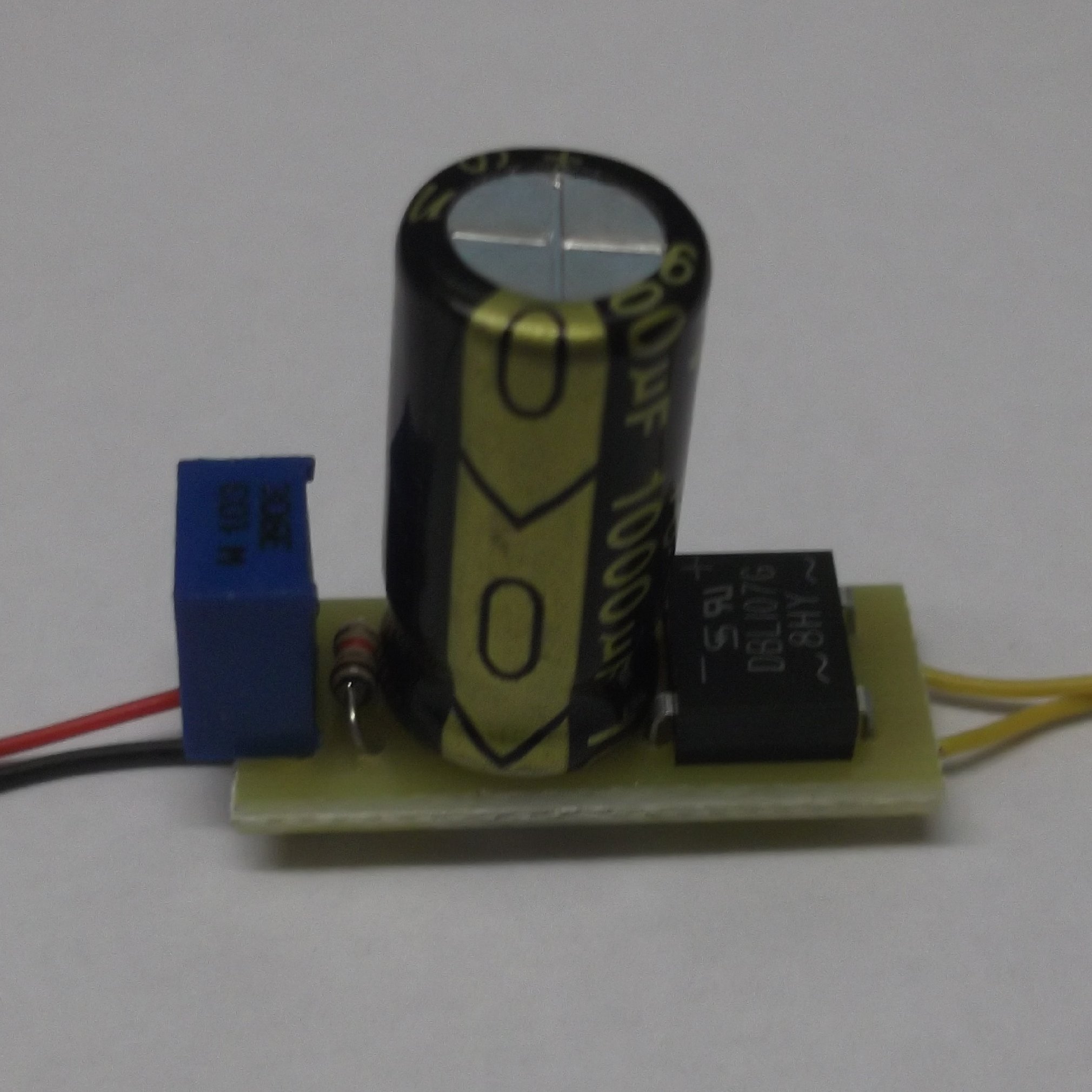

New Improved Anti Flicker unit which can be installed between the pickups/decoders and the LEDs.
Prevents flickering when traversing points etc. and also now includes a potentiometer to dim or brighten the LEDs.
Can also be used as an LED dimmer in other applications.
The unit measures Length 25mm, Width 10mm and overall height 20mm.
Anti Flicker board can be installed between the pickups or decoders and the LED lamps. It is suitable for AC, DC or DCC control.
Connect the yellow wires to your power supply (motor, pickups, decoder etc). these can be connected either way round because the current is rectified on the board.
Connect the red wire to the positive lead of the LED and the black wire to the negative of the LED.
To achieve the desired brightness using a small screwdriver turn the potentiometer either clockwise to make the LED brighter or anti-clockwise to make it less bright.
